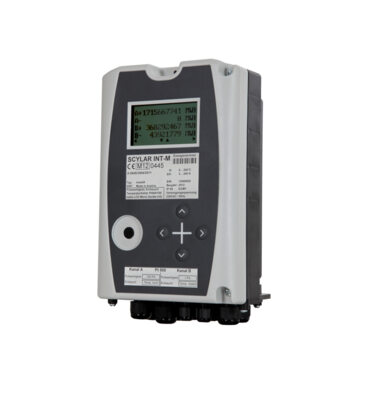

SCYLAR INT M

CALCULATOR

Application

The calculator SCYLAR INT M is a two-channel calculator for measuring thermal energy in heating and cooling circuits. It includes the functions of two calculators. 2 independent energy measurements can be made in one housing at the same time. It is highly suitable in an industrial surrounding. Billing-relevant data can be calculated in the range of local heating and district heating with very high precision. Due to its variety of additional functions it is also very well prepared for future requirements.

Features

  • Application for heating, cooling or climate calculator
  • 4 Flow sensor inputs, include 2 for energy measurement
  • 4 Temperature inputs, for 2- or 4- wire measuring
  • 2 Analog inputs
  • 4 Active analog outputs for 0/4 - 20mA
  • 4 Pulse outputs
  • 1 M-Bus interface
  • 1 Optical interface
  • 1 USB-interface
  • 1 Relay output
  • 4 Further slots for extension modules (2nd MBus .....)
  • 24 Due days
  • Programmable interval memory
  • General
    Typemwz04
    CalculatorTwo channel heating and cooling calculator
    Number of energy measurements2 independent energy measurements in one housing
    ApprovalMID
    Protection typeIP 65
    Power supply230 VAC
    Volume pulsekHzmax. 10¹
    Pulse valuep/l0.0001 to 99999.9999²
    Temperature sensorPt 100 or Pt 500
    ¹ depending on the type of pulse generator
    ² depending of the flow sensor size
  • Basic Features
    Environment classC after EN 1434
    Ambient temperature°C5 ... 55
    Storage temperature°C-25 ... +70
    Environmental conditionmechanical: Class M1
    Environmental conditionelectro magnetic: Class E2
  • Temperature-inputs
    Temperature rangeabsolute°C-50 to +300
    Temperature differenceabsoluteKΔT min < 0.001 / ΔT max 350
    Temperature measuring errormax°C≤ ± 0.04
    Accuracy ∆TtypicalK0.005
    Measurement cyclesec1
    Temperature rangeMID Approval°C0 - 300
    Temperature differenceMID ApprovalKΔT min 3 / ΔT max 300 (Keeping of verification errors even at Δt 1K)
    Temperature sensor typePt 100 or Pt 500
    Temperature measuring2 or 4-wire up to 100 m sensor cable if 4-wire measuring
  • Flow sensor-inputs
    Measurement cyclesec1
    max. Flowm3/h360 000 000
    max. PowerMW151 200 000
    Pulse valuep/l0.0001 to 99999.9999
    Pulse width minµs50
    Reed debouncedHz≤ 30
    Open CollectorHz≤ 10 000
    Open EmitterHz≤ 10 000
    CMOS/TTLHz≤ 10 000
    NamurHzwithout trend identification ≤ 200
    NamurHzwith trend identification ≤ 100
    Active output sensorHz≤ 10 000
    Sensor supplyV / mA8.2 ; 5.0/3.6
  • 2 analog-inputs
    Measurement accuracy%≤ 1
    Input signalmA0(4)-20
    SupplymA25 at Input signal 0 (4)- 20 mA
    Input signalV0(2)-10
    SupplyV11 - 27 at Input signal 0 (2) - 10 mA
  • 4 active analog-outputs
    BurdenΩ≤ 500
    Output currentmA0 - 20
    Output currentmA4 - 20
    OversteppingmA20 - 22
  • 4 pulse-outputs
    Switching frequencymaxHz500
    Input voltagemaxV40
    CurrentmaxmA100
  • 1 relay-output
    Switching frequencyHz≤ 1
    Input voltagemaxV40
    CurrentmaxA1
  • Communication-outputs
    M-Bus interface1 piece≤ 1 Unit Load
    Optical interface1 pieceZVEI
    USB interface1 pieceUSB 2.0
    Extension slots4 piecefor optional moduls e.g.: 2nd M-Bus,...
    - Baud rate options: 300 to 9600 bauds
    - Primary or secondary addressing
    - Protocol selectable: M-Bus, EN 61107
    - Answer telegram selectable
  • Power Supply
    Power supply230 VAC / 50 Hz +10% / -15%
    Power supply on demand 1110 VAC / 60 Hz +10% / -15%
    Power supply on demand 224 VAC / 50 Hz +10% / -15%
    Total input power maxVA17.5
  • Display
    Units energykWh - MWh - GWh - MJ - GJ - TJ - kBtu - MBtu - GBtu - MCal - Gcal - TCal
    Units volumenm³ - l - US-Gal - Ft³
    Units temperature°C - °F- K
    Total values999999.999 - 9999999.99 - 99999999.9 - 9999999999
    Values displayedEnergy - Power - Volume - Flow rate - Temperature and more
    graphic display 64x128 with plaintext menu and back light
  • Chassis
    Protection classIP65
    Cable entry6 piecePG7
    Cable entry6 piecePG11
  • Device
    Tariff8
    Deadlines12
    Interval memory60
    Puffer batteryLifetime without power supply > 6 years
    Ambient classC
    Storage temperature-25 ... +70 °C (battery lifetime: -10°C ... >3 years; -25°C ... >1 year)
    ShieldingEMC
    Calibrate changesimple separation from the upper part and lower part or simple removal of the connectors due to a plug system, removeable connection board with cable gland plate, DIN rail mounting of the housing
    Measurement accuracyEN 1434
  • Dimension
    Overall lengthLmm239.6
    Width of calculatorBmm159
    HeightHmm115
  • Verification change

    In case the calculator needs to be exchanged (e.g. after the end of the verification period)
    this can easily be done with just a few simple steps.

    .) The simple disconnection via the plug system,
    .) Removeable connecting plate,
    .) Top-hat rail fixing of the housing,
    .) or simple separation of the upper part form the lower part

    enables a simple and fast exchange of the calculator.
