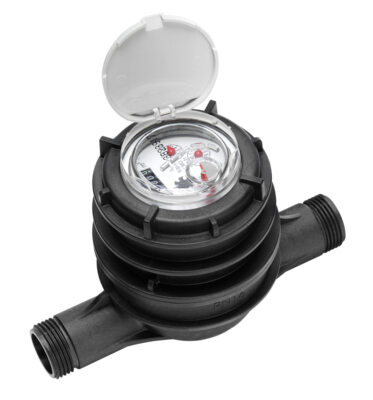

CORONA MCI COMPOSITE 108

MULTI-JET METER | WET RUNNER

Application

Domestic water meter

Features

  • Modular compact multi-jet domestic meter with inductive scanning (without magnetic influence)
  • Housing and screw head made of composite are confirm with the Drinking water Ordinance
  • Resistant against dirt and aggressive water
  • System capability, with standard applicable pulse output 1 l/pulse (inductive). CORONA MCI can be externed in any way - with IZAR RADIO COMPACT 868 I (radio module) or IZAR PULSE I (pulse transmitter)
  • Mounting position: horizontal (R 40 - 160), rising pipe / downpipe (R 40)
  • Extremely low pressure loss and considerably extended measuring range
  • Records very small amounts of water consumption
  • Maximum long-term accuracy and absolutely corrosion-resistant
  • Measuring data better than specified by calibration regulations
  • Capable of withstanding any load for a short time
  • Outlet prepared for installing a non-return valve (DVGW approved)
  • General
    Medium temperature range°C1 ... 30
    Temperature safety°C1 ... 50
    Ambient operating temperature°C1 ... 55
    Ambient storage temperature°C1 ... 55
    Nominal pressurePNbar16
    Display range0.05 l ... 99,999 m³
    Pulse valuel/pulse1
    Protection classIP 68
  • Technical data
    Nominal diameterDNmm20
    Permanent flow rateQ3m³/h4
    Overload flow rateQ4m³/h5
    Transitional flow rateQ2l/h40
    Minimum flow rateQ1l/h251
    Starting flow ratel/h6
    Pressure loss at Q3bar0.6
    Flow rate at 1 bar pressure lossm³/h6.5
    1 based on R 160
  • Approval
    Nominal diameterDNmm20
    Permanent flow rateQ3m³/h4
    MIDTH 8629
    Dynamic range horizontal installation (Q3/Q1)R40 / 80 / 100 / 160
    Dynamic range vertical installation (Q3/Q1)R40
  • Dimensions
    Nominal diameterDNmm20
    Permanent flow rateQ3m³/h4
    Overall length (DIN ISO 4064)Lmm190
    Overall length with couplingL2mm288
    Connection thread on meter (ISO 228/1)InchG1B
    Connection thread of coupling (DIN 2999)Inch
    HeightHmm27
    HeightH1mm105
    DiameterØ Bmm95
    Weight without couplingkg0.62
    Weight with couplingkg0.92

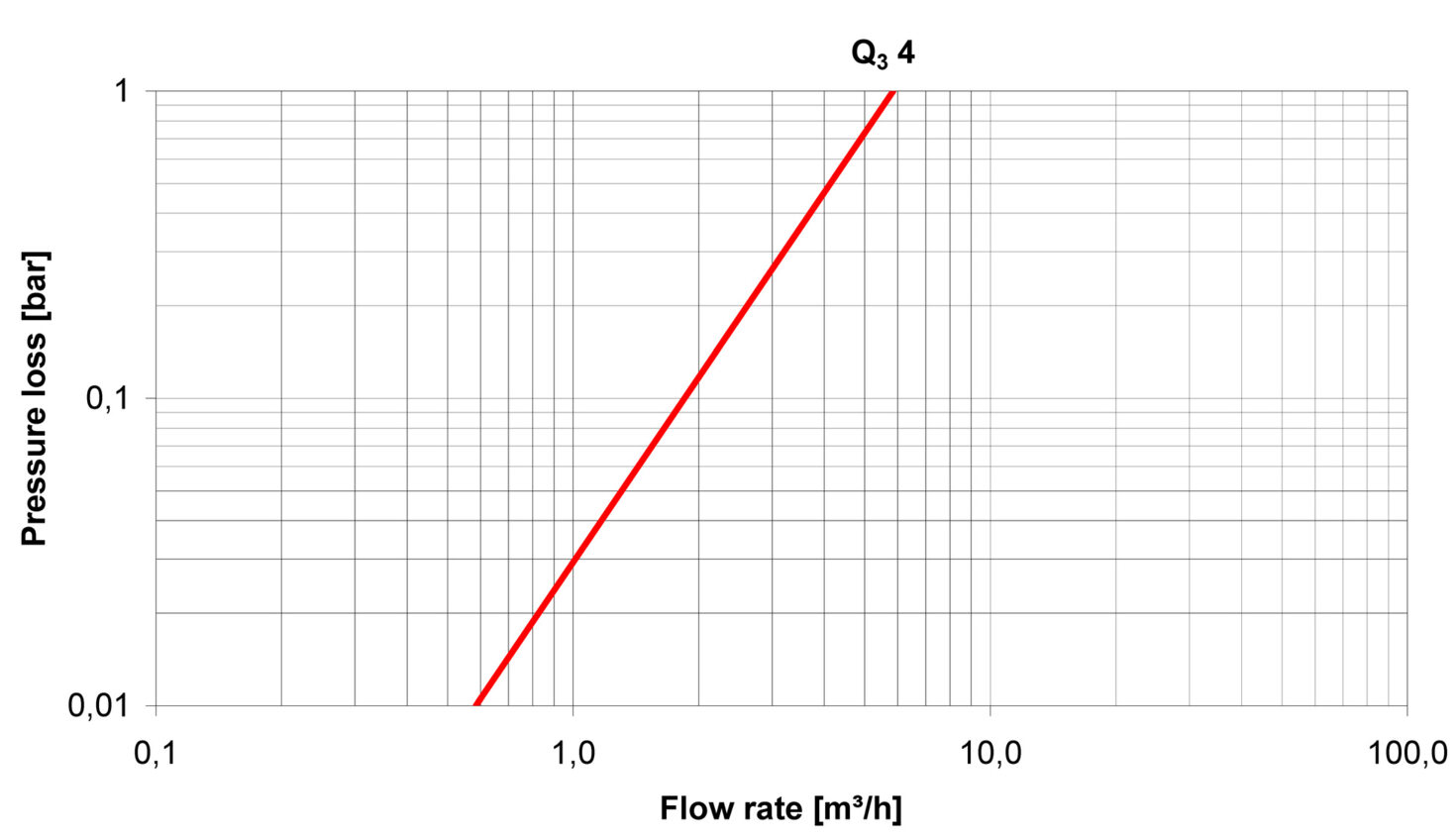

  • Pressure loss graph / Typical error graph
