Battery Packs

Battery Packs Battery Packs

Battery Packs

Besides standard mounting we also offer customized packs meeting all requirements.

Strengths

  • Flexible energy supply according to customer’s requirements
  • Reliable battery management system
  • Certifications, e.g. UN 38.3, CE, IEC 62133
  • Charge level indicator
  • Numerous variable chemical systems
  • Manufacturing also in small quantities
  • Delivery with recharger included
  • Cells from different manufacturers


Electrochemical Systems:

Lithium-Ion Lithium-Ion

Lithium-Ion [Li-Ion] Battery Packs

These battery packs are characterized by excellent features. Especially for applications under heavy environmental conditions, the Li-Ion technology offers a good solution.

Features

  • Wide temperature range
  • Application possible by using low temperature
  • No memory effect
  • High energy density
  • Low weight

Technical Attributes

  • Capacities up to 100 Ah per cell
  • Nominal cell voltage up to 3,7 V
  • Serial and parallel connection of cells
Lithium-Thionylchloride Lithium-Thionylchloride

Lithium-Thionylchloride [LiSOCl2] Battery Packs

Lithium-Thionylchloride batteries are recommended for memory backup as well as for metrology and radio applications.

Features

  • Extreme temperature range
  • Low self-discharge
  • High voltage
  • Hermetically sealed cells by a glass metal seal

Technical Attributes

  • Temperature range -40°C to +85°C
  • Nominal cell voltage: 3,6 V
  • Capacities up to 11 Ah
Lithium-Manganese-Dioxide Lithium-Manganese-Dioxide

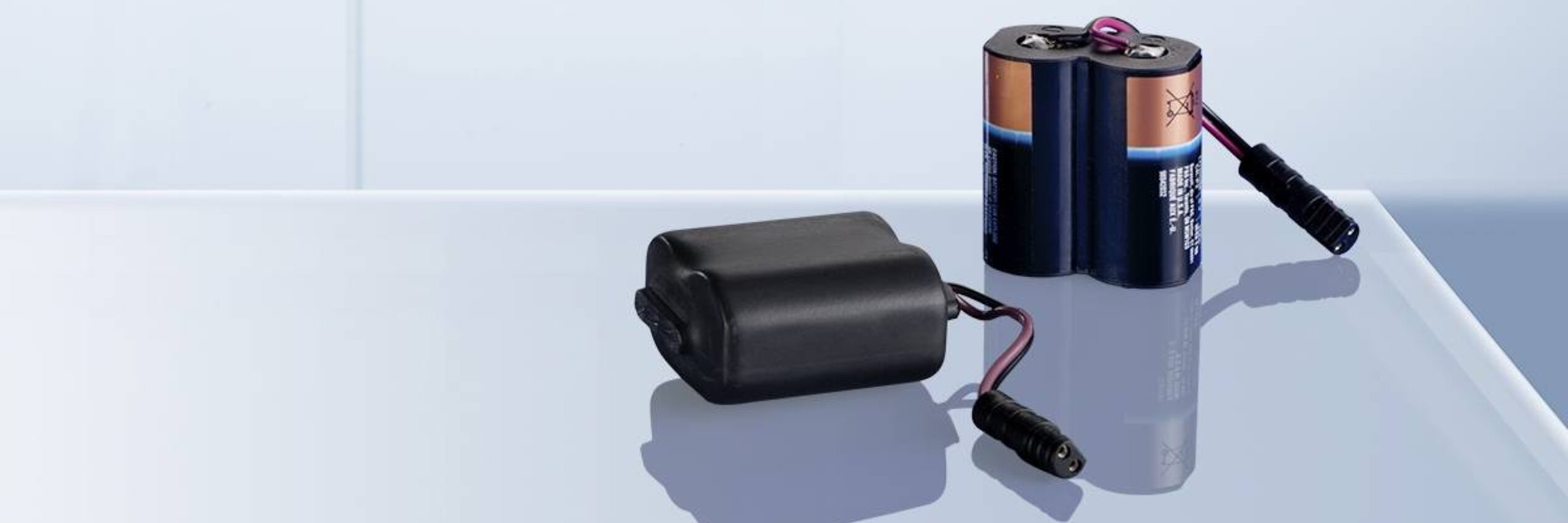

Lithium-Manganese-Dioxide [Li-MNO2] Battery Packs

Lithium-manganese-dioxide batteries are ideal for usage in memory backups, metrology as well as sensor and defense technology.

Features

  • High energy density
  • Secure pressure-free system
  • Wide temperature range
  • Long durability
  • High voltage
  • Low self-discharge
  • Low weight

Technical Attributes

  • Capacities up to 20 Ah per cell
  • Nominal cell voltage: 3,0 V
  • Temperature range -32°C to +70 °C
Nickel-Metal-Hydride Nickel-Metal-Hydride

Nickel-Metal-Hydride [NiMh] Battery Packs

Nickel-metal-hydride batteries are the environmentally friendly replacement of the NiCd technology. The size and charge technology need not be changed.

Features

  • High energy density
  • No memory effect
  • Environment-friendly

Technical Attributes

  • Voltage: 1,2 V per cell
  • Temperature range 0°C to +45°C
Nickel-Cadmium Nickel-Cadmium

Nickel-Cadmium [NiCd] Battery Packs

Due to the battery law, Nickel-cadmium batteries are only authorized to be placed on the market for special applications.

Authorized applications are as follows:

  • Emergency and alert systems
  • Medical equipment
  • Military technology
  • Space

 Features

  • High energy density
  • Rapidly and trickle charge

Technical Attributes

  • Voltage: 1,2 V per cell
  • Temperature range -40°C to 60°C
