HYDRUS BULK

HYDRUS BULK

ULTRASONIC METER

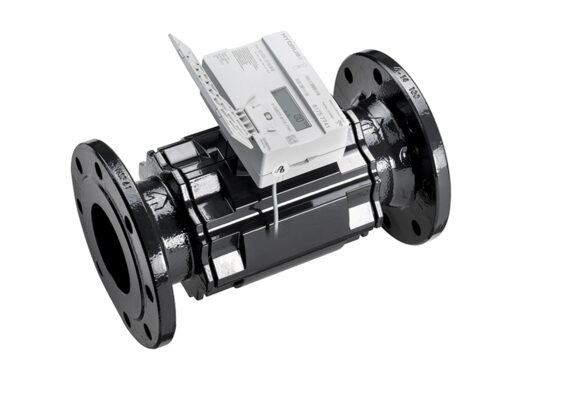

Application

HYDRUS BULK is a static, ultrasonic water meter designed for highly accurate measurement of water. It’s unique design ensures no measurement of air, is insensitive to sedimentation, and allows for long-term stability, even under the most difficult conditions.

Features

  • Sizes 2" - 8"
  • Extreme low-flow accuracy and long-term measurement stability
  • Meets or exceeds C715 AWWA/ANSI Standards for type I and type II meters
  • Complies with NSF/ANSI/CAN Standards 61, Annex F/G as well as FCC part 15B
  • Certified compliance to UL 327B and FM 1044 for fire service applications
  • Battery life of up to 20 years
  • Cast iron, epoxy coated body
  • IP68
  • Installation in any position, no calming sections required
  • Diehl extended encoder protocol that includes temperature, alarms and error messages, etc.
  • 42 days of hourly data storage
  • Technical Data
    Water temperature°F33 ... 122
    Ambient operating temperature°F14 ... 131
    Ambient storage temperature°F14 ... 158 (>95°F max. for up to 4 weeks)
    Maximum operating pressurepsi175
    Mimimum operating pressurepsi5
    Power supply3.6 VDC lithium battery
    Battery lifetimeup to 20 years
    Encoder interface9 digit programmable resolution industry standard encoder protocol, ASCII output for compatibility with all AMR/AMI systems, Diehl Extendend protocol is available
    Data storageAlarms and consumption values (42 days of hourly data)
    Protection classIP68
  • Technical Data Display
    Display indicationLCD, 9-digit, additional symbols/display counter/unit
    UnitsFlow and volume (GPM, gal, ft³)
    Values displayedDisplay test - total volume - firmware version / checksum - current flow - errors / alarms (Additional values based on configuration)
    AlarmsHardware flow - leak detection - backflow - air in pipe - low battery - undersized meter - no consumption - high temperature - freezing risk
  • Approval
    NSFComplies with NSF/ANSI Standard 61, Annex F/G
    AWWAMeets or exceeds applicable sections of the AWWA/ANSI C715 Standards
    FCCComplies with FCC part 15 B
    FMApproved to FM1044 for fire service meters
    ULListed to UL327B for fire service applications
  • Material
    BodyCast iron, epoxy coated
    Register housingEngineered polymer
    TransducersComposite
  • Performance Data
    Size2"3"4"6"8"
    Operating flow rangegpm2.5 - 2507.5 - 50010 - 100020 - 190040 - 2800
    Low Flow rangegpm0.2 - 2.50.35 - 7.50.65 - 101.37 - 202.75 - 40
    Starting flowgpm0.1410.3170.4840.6600.969
    Save maximum operating capacity (SMOC) at normal operationgpm250500100019002800
    Save maximum operating capacity (SMOC) at fire servicegpm250400100016002800
    Pressure loss at SMOC normal operationpsi2.85.52.14.82.8
    Pressure loss at SMOC fire servicepsi2.83.52.13.42.8
  • Pressure Loss Graph / Accuracy Curve
    2" - 8" 2" - 8"

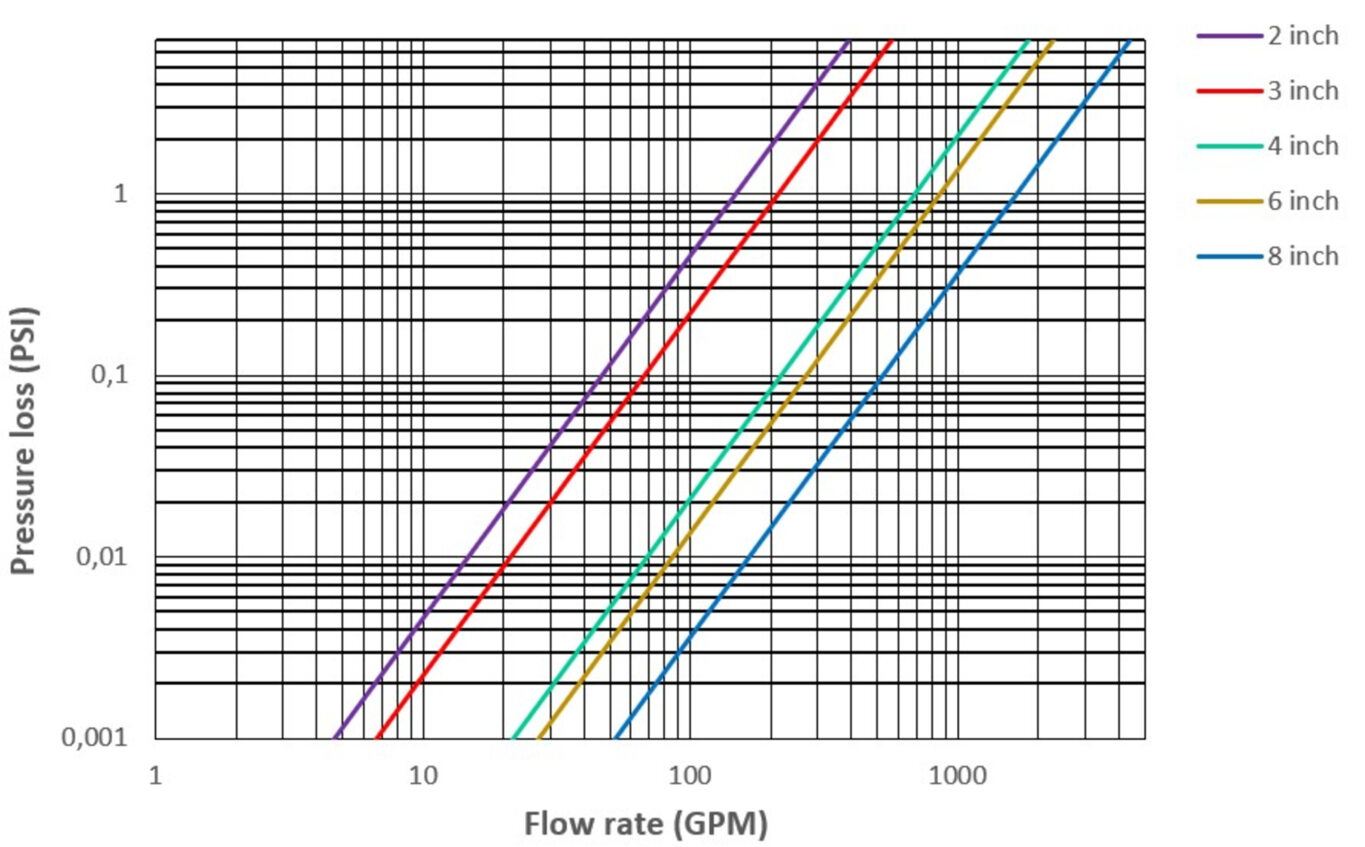

    Pressure loss graph
    2" - 8" 2" - 8"

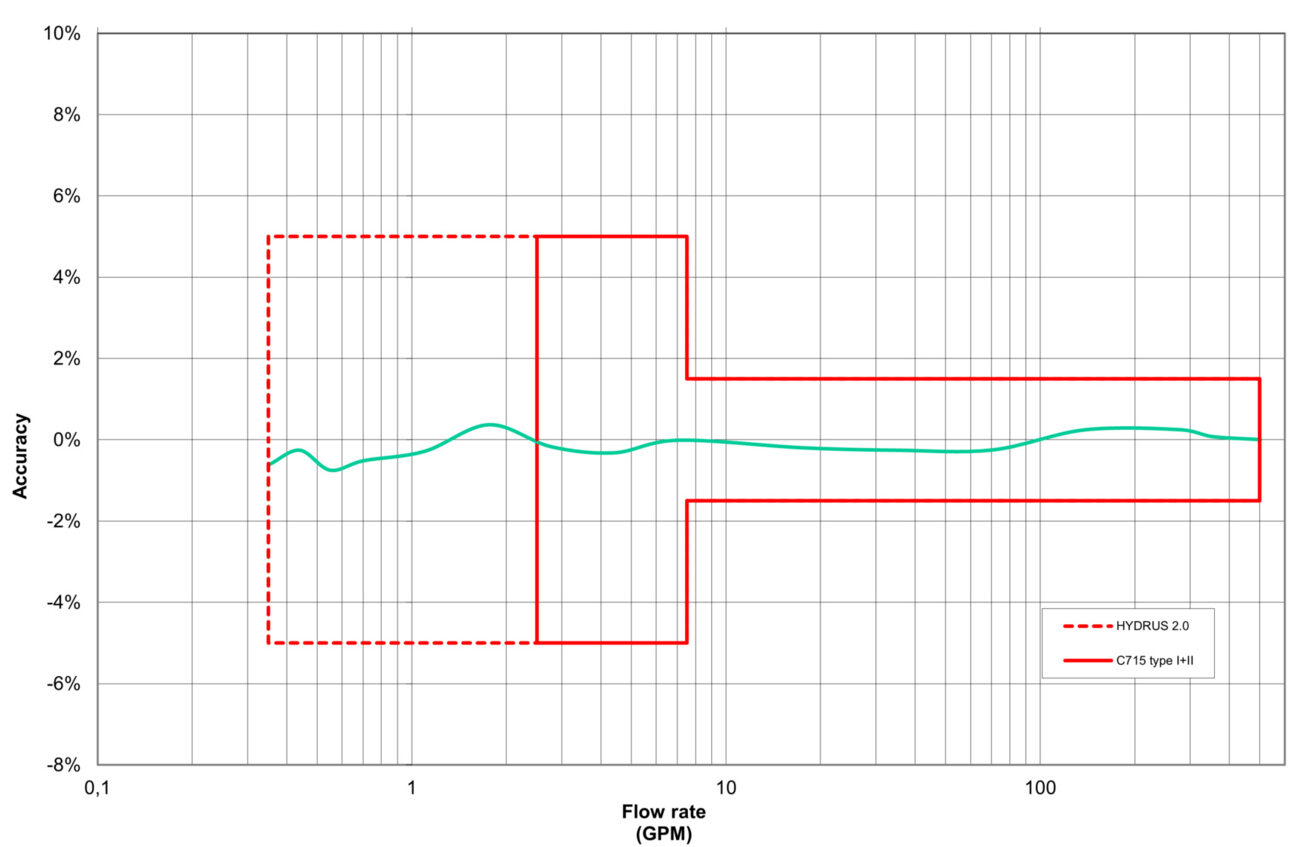

    Typical accuracy curve (3")

  • Dimensions

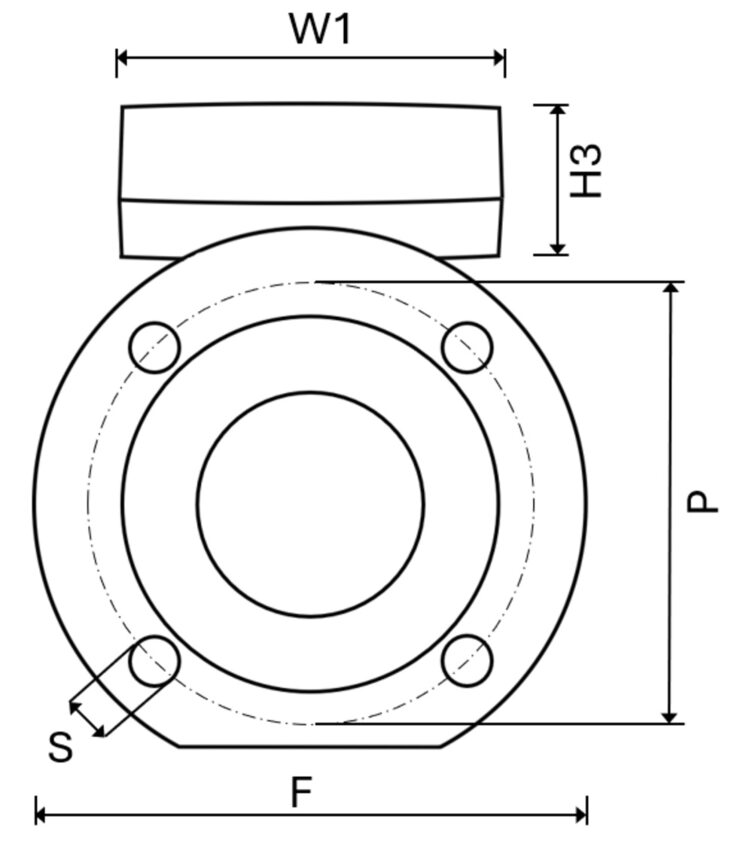

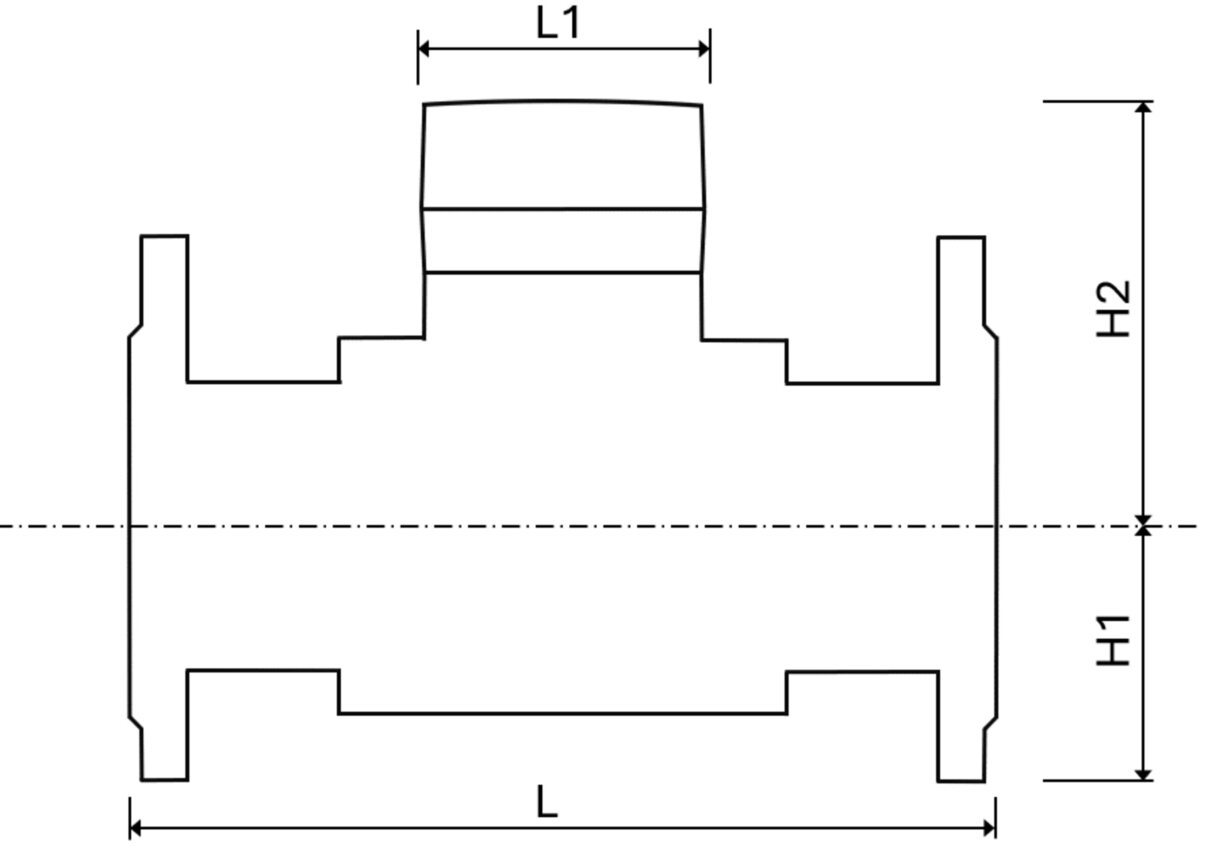

    2" - 8" 2" - 8"
    2" - 8" 2" - 8"
    Size2"3"4"6"8"
    Lay lengthLinch10"12"14"18"20"
    Height to pipe axisH1inch5.66.577.38.4
    Height above pipe axisH2inch2.73.54.35.36.3
    Register lengthL1inch3.93.93.93.93.9
    Register widthW1inch5.55.55.55.55.5
    Register heightH3inch2.42.42.42.42.4
    Flange diameterFinch6.25 (oval)7.591113.5
    Pitch circle diameterPinch4.567.59.511.75
    Number of bolt holespcs24888
    Bolt hole diameterD1inch3/43/43/47/87/8
    Net weightlbs.223646121132
