ALTAIR V5 MANIFOLD

ALTAIR V5 MANIFOLD

VOLUMETRIC METER

Application

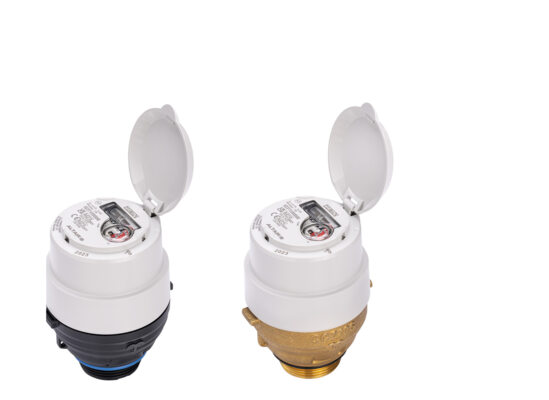

ALTAIR V5 MANIFOLD is the latest generation of volumetric water meters specifically designed for installation on coaxial base in manifold.
ALTAIR V5 MANIFOLD adapts to the most demanding environments and varying water qualities while maintaining its excellent metrology.
Developed within the MID framework, it complies with European standards and holds certificates of sanitary conformity.
Modular, ALTAIR V5 MANIFOLD may be fitted at any time with an IZAR clip-on module converting it into a communicating meter, ready for mobile reading (walk-by, drive-by, passive drive-by) or fixed network reading (radio/wired).

Features

  • Q3=2.5 m3/h / Q3=4 m3/h
  • MID approval up to R=630
  • Starting flow rate at 0.5 l/h (for Q3=2.5m3/h and Q3=4m3/h)
  • Composite or brass body
  • Cold water
  • Metrological data
    Nominal diameterDNmm1520
    Nominal flowrateQ3m³/h2.54
    R standardQ3/Q1160160
    Starting flow ratel/h0.50.5
    Minimum flow rateQ1l/h15.6225
    Transition flow rateQ2l/h2540
    Maximum flow rateQ4m³/h3.1255
    Head loss at Q3bar0.320.61
    Head loss at Q4bar0.500.94
    Kvs (deltaP=Q²/Kvs²)5.135.13
  • Approval
    MID ApprovalLNE-39018 | Type A3
    StandardsEN 14154 | ISO 4064 | OIML R49
    Sanitary conformityACS | KTW | WRAS
  • REACH

    Information pursuant to Article 33 (1) of Regulation (EC) No 1907/2006 of the European Parliament and of the Council of 18 December 2006:
    This product series contains components with the following substances in a concentration of more than 0.1% weight by weight (w/w):
    - Lead (CAS no.: 7439-92-1)

  • Temperature and pressure
    Water temperature°C0.1 ... +50
    Ambient operating temperature°C+1 ... +55
    Storage temperature°C-10 ... +55
    Nominal pressurebar16
  • Dimensions
    ALTAIR V5 MANIFOLD ALTAIR V5 MANIFOLD
    Heightmm113.2
    Widthmm91.3
    Thread connectionsinch1"½
    Weight (brass version)kg0.82
    Weight (composite version)kg0.39
    Fitting and removing wrench
    A special wrench is required for fitting or removing the meter (contact Diehl Metering). The two seals remain on the meter when it is removed.
  • Precision curve
    ALTAIR V5 MANIFOLD ALTAIR V5 MANIFOLD
    Q3=2.5 R160
    ALTAIR V5 MANIFOLD ALTAIR V5 MANIFOLD
    Q3=4 R160

  • Option

    - Plastic register
