HRL-c-SM4

HRL-c-SM4

RADIO MODULE

Application

The HRL-c-SM4 radio module integrates LoRaWAN® technology for fixed Network and wireless M-Bus for mobile reading.
HRL-c-SM4 can be easily clipped onto all modular Diehl Metering meters in the inductive range (Ha+Ti or Ti) equipped with a grey or red ring. HRL-c-SM4 has a built-in inductive sensor that makes it insensitive to magnetic fraud.
Furthermore, it can be used with any pulse-emitting meter when combined with our IZAR BE PULSE interface.

Features

  • Compact radio module for mechanical water meter
  • Designed for fixed Network via LoRaWAN®
  • Designed for mobile reading in parallel via wMBus C2 Mode
  • Ecodesigned
  • Available in 868 MHz
  • NFC as local Interface
  • Insensitive to magnetic fraud
  • Battery lifetime up to 15 years
  • IP 68
  • Main functions : Current index, Hourly indexes*, Minimum and maximum flow rate values*, Return flow volume* (*only in extended frames)
  • Main alarms : Overflow, Fraud, Backflow, No consumption, Leakage, Oversized meter, Low temperature, Low battery
  • Operating principle

    HRL-c-SM4 includes an electronic circuit that collects the data coming from a Diehl Metering Modular water meter. It transmits in real time the index and other operating information in 2 different modes:LoRaWAN® fixed network:HRL-c-SM4 operates in LoRaWAN fixed network. The current index and alarms information are sent via a proprietary protocol over LoRaWAN. In parallel wMBus frames are sent as backup mobile reading possibility.Mobile reading:If only mobile reading is required, HRL-c-SM4 sends wireless M-Bus frames to permit walk-by and drive-by.

  • Technical data
    Communication Protocol for Fixed NetworkProprietary protocol for extended frames over LoRAWAN®
    Communication Protocol for Mobile ReadingWMBus C2 Mode
    Frequency863 ... 870 MHz
    EncryptionIndividual key - AES-128
    Transmission powerUp to 20mW
    Radio rangeUp to 500 m (Mobile reading) and several km (LoRaWAN®) depending on network coverage
    StandardsRoHS 2011/65/EU | RED 2014/53/EU | EN 13757-3/-4
    CertificationLoRaWAN® 1.0.4
    Power supply2 Lithium batteries 3 V
    Battery lifetimeUp to 15 years*
    *Standard conditions of use and temperature. Theoretical life, with no guarantee.
  • Ambient conditions
    Ambiant operating temperature°C-10 ... +55
    Storage temperature°C-20 ... +65
    Ambient humidity%0 ... 100
    Degree of protectionIP 68
  • Configuration
    Local interfaceNFC
    Remote interfacewMbus C2 Mode
  • Compatibility
    MetersDiehl Metering inductive modular range (Ha+Ti or Ti). Pulse weight DN15 to DN40 (1 liter) | Pulse weight DN50 to DN125 (10 liters) | Pulse weight DN150 to DN300 (100 liters)
  • Accessories

    - IZAR BE PULSE (interface for external radio module)
    - IZAR PULSE i + IZAR BE PULSE KIT (pulse emitter + interface for external radio module)

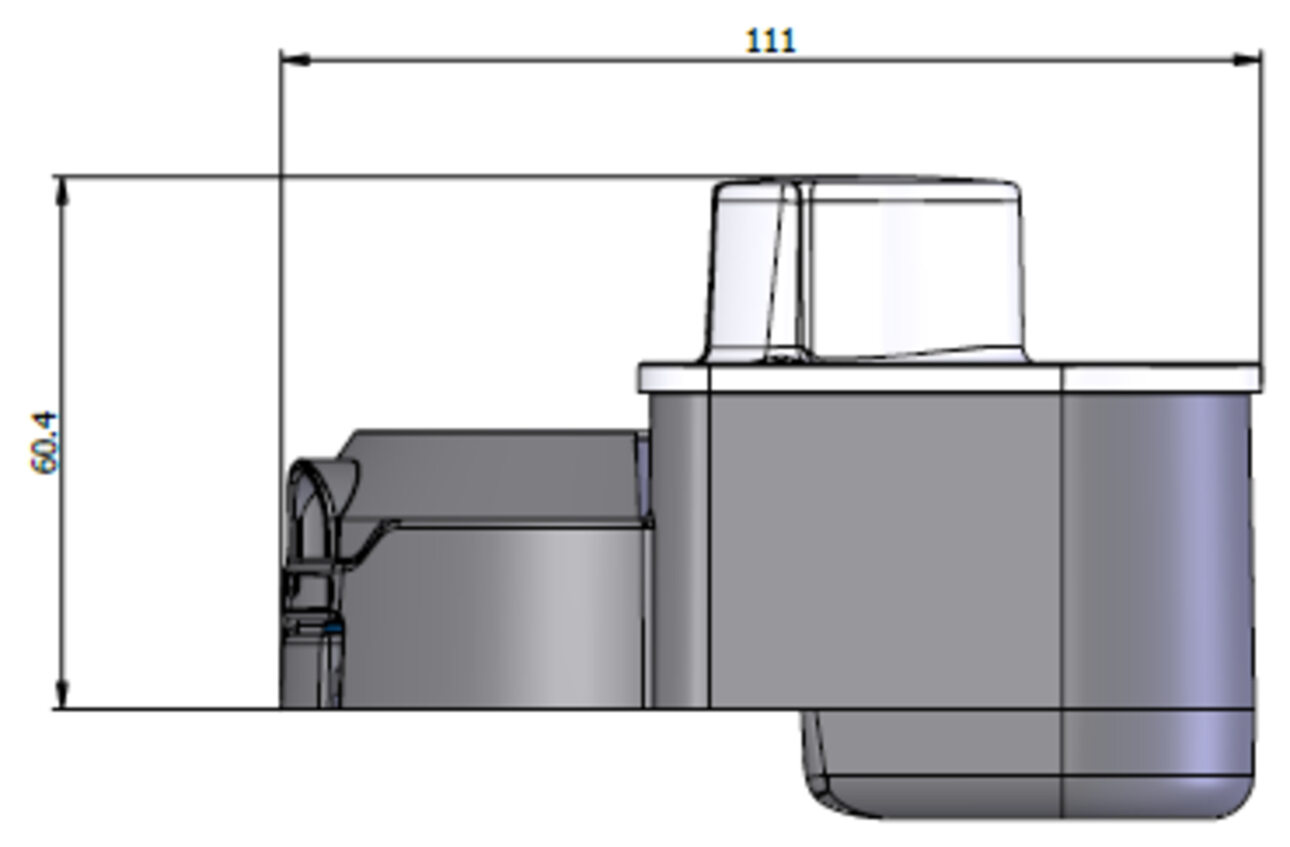

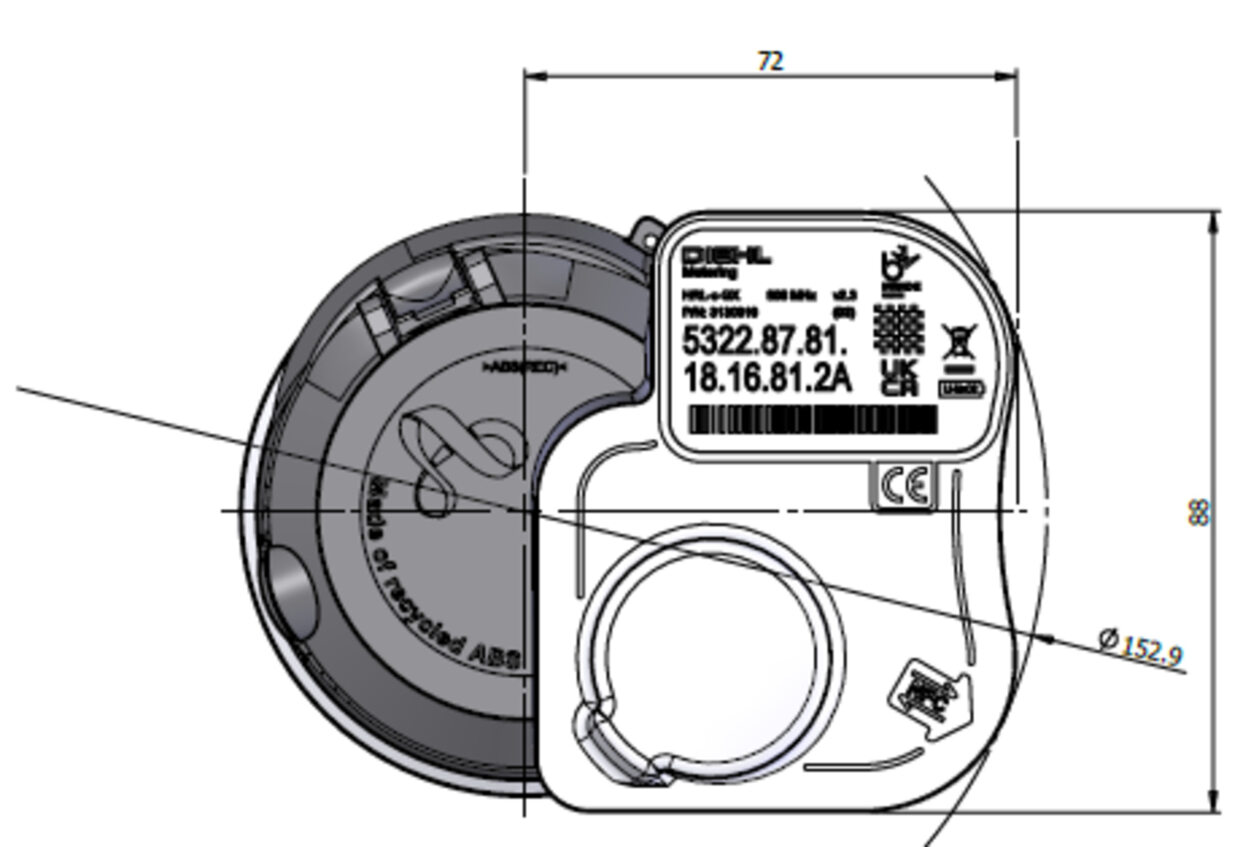

  • Dimensions
    HRL-c-SM4 HRL-c-SM4
    HRL-c-SM4 HRL-c-SM4
    Lengthmm111
    Total Heightmm73
    Height over metermm56
    Widthmm88
    Total massg178.8
    EEE mass (2012/19/UE)g61.9
    Battery & accumulator mass (2006/66/CE)g45.8
    Lithium massg1.6
