IZAR RC IoT LRW WMB

IZAR RC IoT LRW WMB

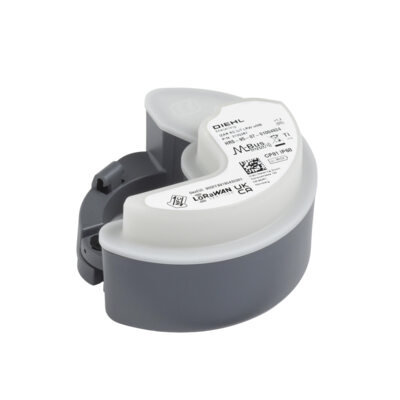

RADIO MODULE

Application

The IZAR RC IoT LRW wMB radio module integrates LoRaWAN® technology for fixed network and wireless M-Bus for mobile reading. IZAR RC IoT can be easily clipped onto all modular Diehl Metering meters in the inductive range (Ha+Ti or Ti) equipped with a grey or red ring*. IZAR RC IoT has a built-in inductive sensor that makes it insensitive to magnetic fraud. Furthermore, it can be used with a pulse-emitting meter when combined with our IZAR BE PULSE interface for billing. IZAR RC IoT is integrated into IZAR LoRaWAN® solution with software and accessories.

Features

  • Compact radio module for mechanical water meter
  • Designed for LoRaWAN® fixed network
  • Wireless M-Bus fallback for mobile reading in parallel with the fixed network
  • Ecodesigned
  • Available in 868 MHz
  • Main functions depending on the profile : Current index, Hourly consumptions, Minimum and maximum flow rate values, Backflow volume, Midnight Index
  • Main alarms : Oversized meter, Overflow, Freezing risk, Magnetic fraud, Mechanical fraud, Backflow volume, No consumption, High impact leakage detection
  • NFC as local Interface
  • Data granularity (monthly, daily, hourly, 1/4-hourly)
  • Data logger
  • Insensitive to magnetic fraud
  • Battery lifetime up to 15 years
  • IP 68
  • Operating principle

    IZAR RC IoT LRW wMB includes an electronic circuit that collects the data coming from a Diehl Metering modular water meter. It transmits the index and other operating information in fixed network and via mobile reading. Fixed network:IZAR RC IoT LRW wMB operates in LoRaWAN® fixed network. The radio module complies with the LoRaWAN® Specification 1.0.4 in Class A, supporting Adaptive Data Rate (ADR) and Over The Air Activation (OTAA). The radio module data are sent via a proprietary protocol over LoRaWAN® with meter data redundancy. A profile allows the radio module to send the current index and alarms according to the TR06 OMS Over LoRaWAN®.Mobile reading:IZAR RC IoT LRW wMB sends wireless M-Bus frames for mobile reading. The radio module data are sent via wM-Bus C-Mode. The radio module can be configured locally via C2.The modules logs can be retrieved on-demand:- 1/4-hourly consumption values- Hourly consumption values- Midnight index values- Monthly index values (midnight index of the last day of the month)

  • Technical data
    Communication Protocol for Fixed NetworkOMS over LoRaWAN® (TR06) for current Index and Alarms. Proprietary protocol for extended data over LoRAWAN®
    Sending interval in Fixed NetworkLast midnight index sent every 12 hours - Last 16 hourly consumption values sent every 8 hours - Last nightline consumption values sent every 12 hours - Event frame triggered by one of the four major events immediately sent with 3 repetitions
    Communication Protocol for Mobile ReadingWireless M-Bus C-Mode
    Sending interval in Mobile ReadingCurrent index and alarms sent every 60s (walk-by), accelerated to 15s allowing passive drive-by and drive-by depending on the status of the LoRaWAN connection. Datalogger on-demand
    Frequency863 ... 870 MHz
    EncryptionIndividual keys for NFC, wM-Bus and LoRaWAN®
    Transmission powerUp to 16mW (12 dBm) EIRP
    Radio rangeUp to 500 m (Mobile Reading) and several km (Fixed Network) depending on network coverage
    StandardsRoHS 2011/65/EU | RED 2014/53/EU | EN 13757-3/-4
    CertificationLoRaWAN® 1.0.4
    Power supply2 Lithium batteries 3 V
    Battery lifetimeUp to 15 years*
    *Standard conditions of use and temperature. Theoretical life, with no guarantee.
  • Ambient conditions
    Ambiant operating temperature°C-10 ... +55
    Storage temperature°C-20 ... +65
    Ambient humidity%0 ... 100
    Degree of protectionIP 68
  • Configuration
    Local interfaceNFC and wireless M-Bus
    SoftwareIZAR@Mobile for local reading and configuration. IZAR PLUS PORTAL for remote reading.
  • Compatibility
    MetersDiehl Metering Ha+Ti or Ti inductive modular range as well as our modular multijet CORONA MWi, and with the exception of our combined WESAN WPV G. Pulse weight DN15 to DN40 (1 liter) | Pulse weight DN50 to DN125 (10 liters) | Pulse weight DN150 to DN300 (100 liters)
  • Accessories

    - IZAR BE PULSE (interface for external radio module)
    - IZAR PULSE i + IZAR BE PULSE KIT (pulse emitter + interface for external radio module)

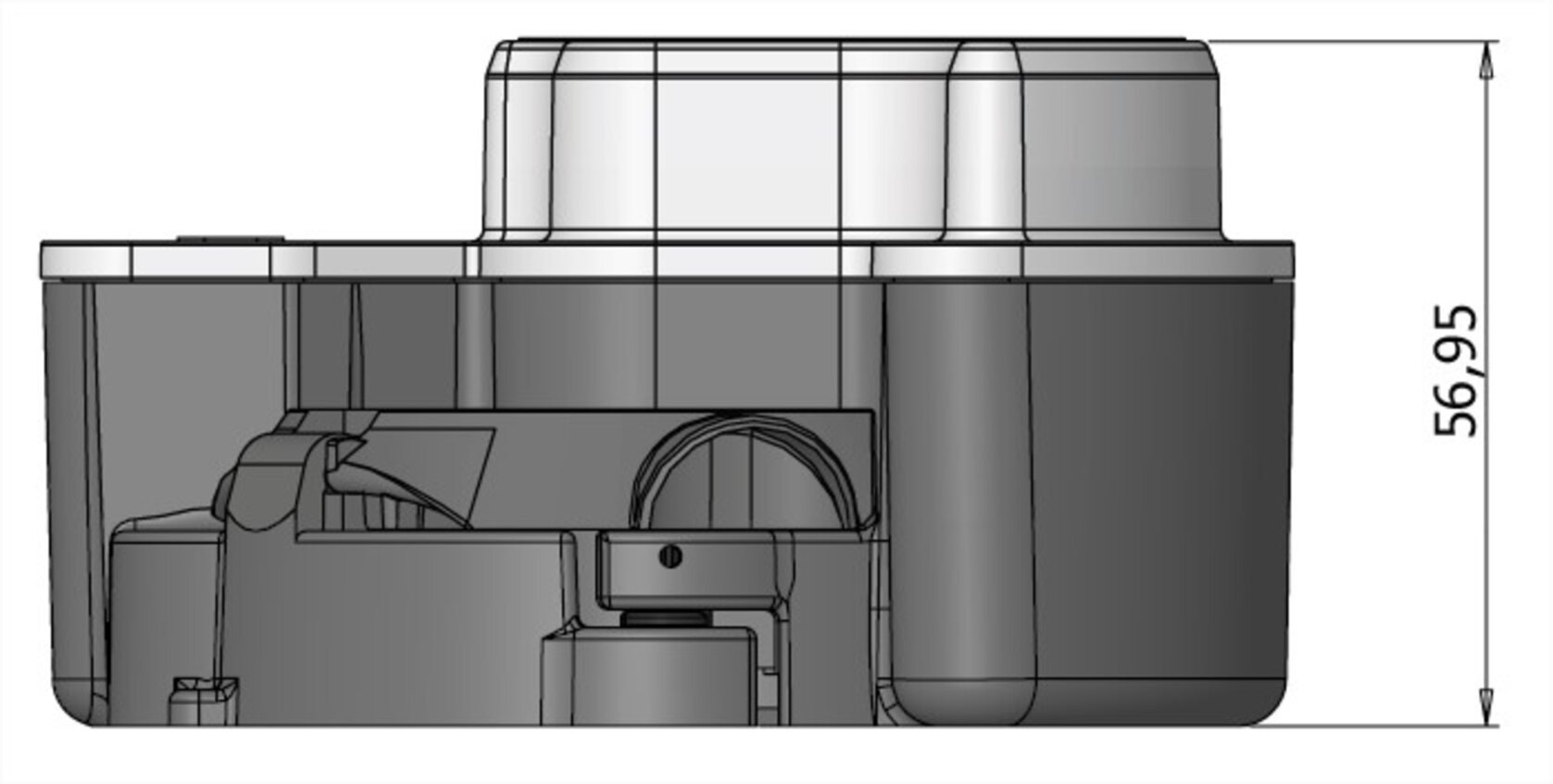

  • Dimensions
    IZAR RC IoT LRW WMB IZAR RC IoT LRW WMB
    Diametermm106.1
    Total Heightmm56.95
    Height over metermm52.65
    Total massg161
    EEE mass (2012/19/UE)g60.9
    Battery & accumulator mass (2006/66/CE)g45.8
    lLithium massg1.6
