RADIO MODULE
IZAR RC i G4
IZAR RCi G4 is designed for remote meter reading in mobile and/or fixed network (OMS protocol). Combined with water meters equipped with inductive technology (grey or red ring), it enables billing and accurate network monitoring management.
IZAR RC i G4
- Radio protocol
- OMS
- Frequency band
- 868 / 434 MHz
- Sending interval
- 12 Sec.
- Alarms
- Detailed Leakage information, Manipulation, Overflow …
- Battery lifetime
- Up to 15 years
-
RADIO MODULE
IZAR RC 868 i W G4
IZAR RCi W G4 is designed for radio remote meter reading in mobile and/or fixed network (OMS protocol). Combined with manifold water meters, it enables billing and accurate network monitoring management.
IZAR RC 868 i W G4
- Radio protocol
- OMS
- Frequency band
- 868 MHz
- Sending interval
- 12 Sec.
- Alarms
- Detailed Leakage information, Manipulation, Overflow …
- Battery lifetime
- Up to 15 years
-
RADIO MODULE
IZAR RC i R4
IZAR RC i R4 is designed for radio remote meter reading in mobile and/or fixed network. Combined with water meters equipped with inductive technology (grey ring), it enables billing and accurate network monitoring management.
IZAR RC i R4
- Radio protocol
- PRIOS
- Frequency band
- 868 / 434 MHz
- Sending interval
- 8 sec.
- Alarms
- Leakage / Tampering / Overflow ...
- Battery lifetime
- Up to 15 years
-
RADIO MODULE
IZAR RC 868 i W R4
IZAR RC i W R4 is designed for radio remote meter reading in mobile and/or fixed network. Combined with manifold water meters , it enables billing and accurate network monitoring management.
IZAR RC 868 i W R4
- Radio protocol
- PRIOS
- Frequency band
- 868 MHz
- Sending interval
- 8 Sec.
- Alarms
- Leakage, Manipulation, Overflow, ...
- Battery lifetime
- Up to 15 years
-
RADIO MODULE
IZAR RADIO EXTERN AIR
IZAR RADIO EXTERN AIR (in-house application) measures temperature and humidity. The hybrid and flexible sending scheme allows the operation with an IZAR RADIO mobile (walk-by) and/or fixed network (wireless or wired) solution.
IZAR RADIO EXTERN AIR
- Radio protocol
- OMS 3.0.1 Mode 5 (AES128bit)
- Frequency band
- 868 MHz
- Sending interval
- 1 / 5 / 10 / 15 min
- Alarms
- Fraud
- Battery lifetime
- up to 10 years
-
RADIO MODULE
IZAR RADIO EXTERN 868 TEMP INT
The IZAR RE TEMP INT measures temperature with its integrated sensor and transmits data via radio, enabling monitoring and management of the installation. The product is designed for remote reading in mobile and/or fixed network.
IZAR RADIO EXTERN 868 TEMP INT
- Temperature type
- Current / min / max / average
- Frequency band
- 868 MHz
- Sending interval
- 8 Sec.
- Time constant
- 20 min.
- Battery lifetime
- Up to 12 years
-
RADIO MODULE
IZAR RADIO EXTERN TEMPERATURE
IZAR RE TEMP measures temperature with its cable sensor and transmits data via radio, enabling monitoring and management of the installation. The product is designed for remote reading in mobile and/or fixed network.
IZAR RADIO EXTERN TEMPERATURE
- Temperature type
- Current / min / max / average
- Frequency band
- 868 MHz
- Sending interval
- 8 sec.
- Time constant
- 3 min.
- Battery lifetime
- Up to 12 years
-
RADIO RECEIVER

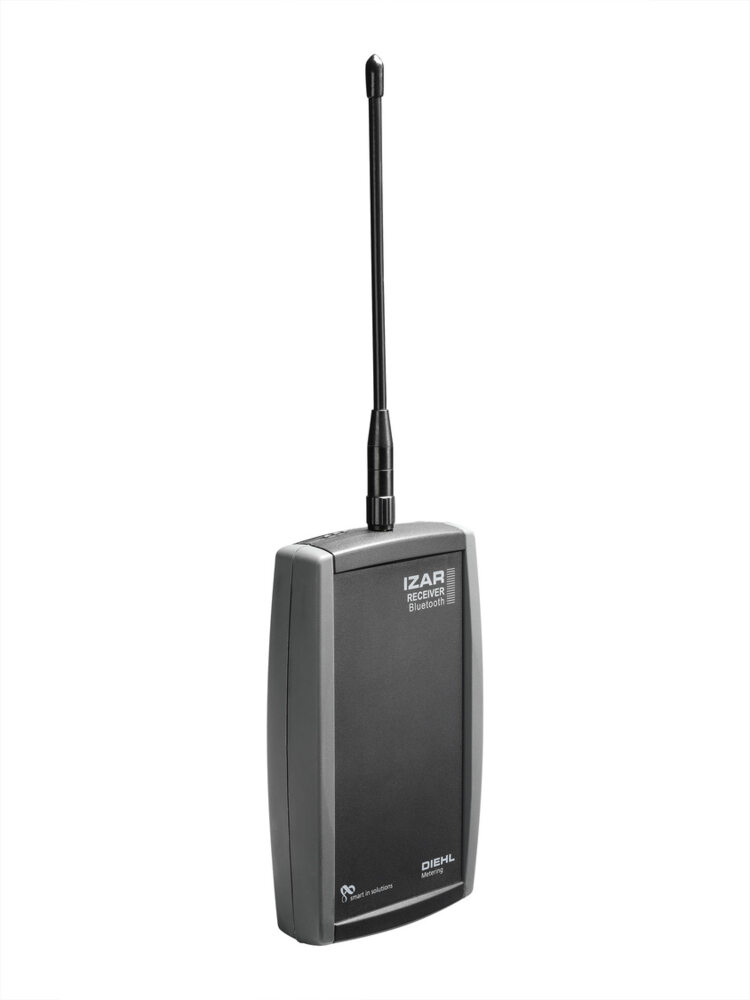

IZAR RECEIVER BT
IZAR RECEIVER BT is a radio receiver designed for mobile readings of multi-energy meters in walk-by or drive-by mode. The collected data is sent on to the IZAR@MOBILE 2 software via Bluetooth®.
IZAR RECEIVER BT
- Number of meters
- unlimited
- Frequency band
- 868, 434 MHz
- Data logging
- transparent mode
- Power supply
- battery driven (up to 15 hours)
- Interfaces
- Bluetooth®
-
RADIO RECEIVER
IZAR RDC STANDARD
The IZAR Radio Data Concentrator STANDARD is a receiver based on the Open Metering System (OMS) specifications. IZAR RDC STANDARD has been designed to facilitate the best-possible implementation of an in-house radio fixed network.
IZAR RDC STANDARD
- Numbers of meters
- 100 / 500 / 1,000
- Frequency band
- 868 / 434 MHz
- Data logging
- 5 min - 24 hours
- Power supply
- 110 ... 230 V
- Interfaces
- 2G and LAN
-
RADIO RECEIVER
IZAR RDC PREMIUM R4
The IZAR Radio Data Concentrator Premium is the most powerful radio data concentrator of the Diehl Metering RDC product family. It gets wide area fixed networks ready for mass data transmission and network monitoring.
IZAR RDC PREMIUM R4
- Numbers of meters
- 10,000
- Frequency band
- 868, 434 MHz
- Data logging
- 5 min - 24 hours
- Power supply
- 110 ... 230 V
- Interfaces
- 2G / 3G or LAN
-
RADIO RECEIVER
IZAR RDC BATTERY
IZAR RDC BATTERY is a battery driven concentrator designed for fixed network fully autonomous in energy thanks to a battery pack easily replaceable on site. It reads multi-energy meters and sensors based on Open Metering System (OMS) specifications.
IZAR RDC BATTERY
- Number of meters
- 4,000
- Frequency band
- 868 / 434 MHz
- Data logging
- 5 min … 24 hours
- Power supply
- Battery up to 10 years | external power supply
- Interfaces
- 2G / 3G
-
RADIO RECEIVER
IZAR RDC VEHICLE
IZAR RDC VEHICLE is a concentrator designed for passive drive-by solutions. Installed on any type of vehicles, it reads autonomously, without driver intervention, multi-energy meters and sensors based on Open Metering System (OMS) specifications.
IZAR RDC VEHICLE
- Number of meters
- 1,000
- Frequency band
- 868 / 434 MHz
- Data transfer
- Automatic on FTP/SFTP
- Power supply
- External connector for powering from the vehicle (12 ... 24 V DC)
- Interfaces
- GPRS / 2G / 3G
-
RADIO RECEIVER
IZAR PASSIVE DRIVE-BY BOX 2
IZAR PASSIVE DRIVE BY BOX is the solution for « passive drive by » reading. Robust, installed on any type of trucks, it reads autonomously, without driver intervention, multi-energy meters/sensors based on Open Metering System (OMS) specifications.
IZAR PASSIVE DRIVE-BY BOX 2
- Number of meters
- 1,000
- Frequency band
- 868 / 434 MHz
- Data transfer
- Automatic on FTP / SFTP
- Power supply
- External connector for powering from the vehicle (12 ... 24 V DC)
- Interfaces
- GPRS / 2G / 3G
-
RADIO RECEIVER
IZAR RECEIVER M-BUS
IZAR RECEIVER M-BUS is used for stationary readings of IZAR radios or Open Metering consumption meters. Remote reading and storage of data from these meters is executed in combination with M-Bus Master IZAR CENTER.
IZAR RECEIVER M-BUS
- Numbers of meters
- Up to 450
- Frequency band
- 868 / 434 MHz
- Antenna
- Internal
- Power supply
- Supplied by M-Bus
- Communication speed
- 2,400 and 9,600 baud
-
RADIO RECEIVER
IZAR RECEIVER DISPLAY 2
Multi-energy radio receiver fitted with a touch screen display. It is designed to display the index of up to 30 meters equipped with radio communication installed in hard to reach locations.
IZAR RECEIVER DISPLAY 2
- Number of meters
- Up to 30 meters
- Frequency band (MHz)
- 868 / 434
- Compatibility
- EN13757-4, mode T1 and C1, OMS standard and PRIOS protocol
- Power supply
- USB or rechargeable Lithium-ion battery
- Interface
- USB 2.0
-
RADIO RECEIVER
IZAR RDC PREMIUM 2
The IZAR Radio Data Concentrator Premium 2 is the most powerful data concentrator of Diehl Metering’s RDC product family. This is the latest generation of receivers for fixed network that benefits from long experience and multiple deployments of Diehl Metering.
IZAR RDC PREMIUM 2
- Numbers of meters
- 50,000
- Frequency band
- 868, 434, long range MHz
- Data logging
- 5 min - 24 hours
- Power supply
- 110 ... 230 V
- Interfaces
- 2G / 3G / 4G or LAN
-
RADIO RECEIVER
IZAR RDC MOTION
IZAR RDC MOTION is a a radio receiver designed for mobile readings of multi-energy meters in walk-by or drive-by mode. The collected data is sent to the IZAR@MOBILE 2 software via Bluetooth.
IZAR RDC MOTION
- Number of meters
- unlimited
- Frequency band
- 868 / 434 MHz
- Data logging
- transparent mode
- Power supply
- battery driven
- Interface
- Bluetooth
-
RADIO RECEIVER
IZAR RDC BATTERY Light
IZAR RDC BATTERY Light is a battery driven concentrator designed for fixed network fully autonomous in energy thanks to a battery pack easily replaceable on site. It reads multi-energy meters and sensors based on Open Metering System (OMS) specifications.
IZAR RDC BATTERY Light
- Number of meters
- 4,000
- Frequency band
- 868 / 434 MHz
- Data logging
- 5 min ... 24 hours
- Power supply
- Battery up to 10 years | external power supply
- Interfaces
- 2G / 3G
-
HANDHELD
IZAR HANDHELD for Android™
IZAR HANDHELD for Android™ is a robust handheld computer, ideal for the field, used for the multi-energy radio reading and allowing the configuration and control of smart meters. It is equipped with its IZAR@MOBILE 2 for Android™ software.
IZAR HANDHELD for Android™
- Operating system
- Android™ 7.0 Nougat
- Display
- Super bright 5" TFT, qHD, 1080x1920 screen
- Interfaces
- USB, NFC, GPS, Bluetooth®, WIFI, 2G/3G/4G/LTE
- Environment
- IP68; MIL-SPEC 810G, Shock and Drop, Category 4 vibration
- Battery
- 5,000 mAh | Pump express 2.0 | non-removable Li-Ion
-
RADIO RECEIVER
IZAR RDC VEHICLE Light
IZAR RDC VEHICLE Light is a concentrator designed for passive drive-by solutions. Installed on any type of vehicles, it reads autonomously, without driver intervention, multi-energy meters and sensors based on Open Metering System (OMS) specifications.
IZAR RDC VEHICLE Light
- Number of meters
- 1,000
- Frequency band
- 868 / 434 MHz
- Data transfer
- Automatic on FTP/SFTP
- Power supply
- External connector for powering from the vehicle (12 ... 24 V DC)
- Interfaces
- GPRS / 2G / 3G
-
SOFTWARE
IZAR@NET 2
IZAR@NET 2 is meter data management software program developed for use on local servers/PCs. It provides all the main functions required for the efficient processing and simple administration of metering data via a fixed network or walk-by/drive-by.
IZAR@NET 2
- Map
- Integrated map view for meters, read out tours and data concentrators
- Dashboard
- Interactive customizable dashboard for system monitoring
- Analytics
- Analysis module e.g. for leakage and energy loss detection
- Process optimization
- Fully automated imports, exports and notifications
- Multi-operation
- Multi-utility, mobile and fixed in one application
-
RADIO RECEIVER
IZAR PASSIVE DRIVE-BY BOX 2 Light
IZAR PASSIVE DRIVE BY BOX 2 light is the solution for « passive drive by » reading. Robust, installed on any type of trucks, it reads autonomously, without driver intervention, multi-energy meters/sensors based on Open Metering System (OMS) specifications.
IZAR PASSIVE DRIVE-BY BOX 2 Light
- Number of meters
- 1,000
- Frequency band
- 868 / 434 MHz
- Data transfer
- Automatic on FTP / SFTP
- Power supply
- External connector for powering from the vehicle (12 ... 24 V DC)
- Interfaces
- GPRS / 2G / 3G
-
SOFTWARE
IZAR@MOBILE 2
IZAR@MOBILE 2 allows for simple and economic reading of radio meters and manual meters. The integrated map view allows all the tasks involved in meter reading and replacing the meter to be completed on the go.
IZAR@MOBILE 2
- Map
- Integrated interactive map for the optimal route
- Dashboard
- Dashboard for live work summary
- Analytics
- Meter alarm monitoring
- Process optimization
- Photo function for documentation purposes
- Multi-operation
- Reading and replacement in one application
-
SOFTWARE
IZAR@MOBILE 2.2 for Android™
IZAR@MOBILE 2 for Android™ is a software designed for fast and efficient mobile reading of smart multi-energy meters. The software IZAR@MOBILE 2 comes pre-installed with the IZAR HANDHELD for Android™ handheld.
IZAR@MOBILE 2.2 for Android™
- Operating system
- Android™
- Multi-energy solution
- Water, heat, gaz, electricity, temperature, humidity…
- Tour management
- Manual and radio meters up to 2,000 meters
- Reading mode
- Fast reading mode, alarms stop, full detailed information
- Data transfer
- Localy (USB) or remotly (FTP)
-
SERVICES
IZAR PLUS PORTAL
IZAR PLUS portal is a meter data management software program which is offered as a service in a secure electronic data centre in Germany. It offers all the core functions for processing metering data via a fixed network and for mobile readings.
IZAR PLUS PORTAL
- Map
- Integrated map view for meters, tour planning and network management
- Dashboard
- Interactive customizable dashboard for system monitoring
- Analytics
- Analysis module e.g. for leakage and energy loss detection
- Process optimization
- Fully automated data imports, exports and notifications
- Security
- ISO/IEC 27001 and ISO 9001 certified data center infrastructure
-
M-BUS MASTER
IZAR CENTER
The IZAR CENTER is an M-Bus level converter that allows data from M-Bus meters to be read with an extremely high resolution over large distances. The IZAR RECEIVER M-BUS helps to make readings from IZAR RADIO meters possible.
IZAR CENTER
- Numbers of meters
- 1,000
- M-Bus Interfaces
- M-Bus input and M-Bus output
- Data logging
- 1 min - 24 hours
- Power supply
- 110 ... 230 V
- Interfaces
- USB | Ethernet LAN | RS232
-
M-BUS CONVERTER
IZAR PORT PULSE
IZAR PORT PULSE makes it possible to connect resource meters with pulse output to an M-Bus network (pulse conversion in M-Bus protocol). It is suitable for all types of meters with a pulse transmitter or open collector output.
IZAR PORT PULSE
- Number of meters
- Up to 2
- Meter interface
- Pulse or Open Collector
- Max. cable length
- 1.5 m
- Power supply
- Supplied by M-Bus
- Communication speed
- 300 and 2,400 baud
-
M-BUS CONVERTER
IZAR PORT PULSE MINI
The IZAR PORT PULSE MINI makes it possible to connect resource meters with pulse output to an M-Bus network (pulse conversion in M-Bus protocol). It is suitable for all types of meters with a pulse transmitter or open collector output.
IZAR PORT PULSE MINI
- Numbers of meters
- Up to 2
- Meter interface
- Pulse or Open Collector
- Max. cable length
- 1.5 m
- Power supply
- By M-Bus
- Communication speed
- 300 and 2,400 baud
-
SOFTWARE
IZAR@HOME
IZAR@HOME is a smartphone application for consumers that can be used on iOS™ and Android™ operated smartphones. The app helps users to learn more about their consumption, to use resources responsibly and to save money.
IZAR@HOME
- My Meter
- Display the readings of meters incl. alarm information (e.g. leakage) for full transparency
- Consumption
- Show consumption statistics in different time granularities incl. benchmark possibilities
- E-Bill
- Inform in a transparent, digital and timely manner about the latest bill information
- Notifications
- Forward notifications, e.g. availability of new reports or important utility information
- Help Center
- Show relevant frequently asked questions and reduce support effort
-
M-BUS EMITTER
IZAR MBUS COMPACT i
IZAR MBUS COMPACT i is a M-Bus emitter that can be clipped onto all the water meters equipped with inductive technology. Data and alarms are transmitted via M-Bus protocol enabling billing, monitoring and the management of the installation.
IZAR MBUS COMPACT i
- Meter interface
- M-Bus protocol (EN 13757)
- Cable length
- 2 m
- Power supply
- Via M-Bus
- Communication speed
- 300 and 2,400 baud
- Battery lifetime
- Up to 15 years
-
ACCESSORY
IZAR DOSING
IZAR DOSING is an electronic register with a reset function designed for industrial application allowing precise dosing by simple reading on a large display, directly indicating the volume of liquid that has passed.
IZAR DOSING
- Display
- LCD with 5 digits
- Resolution
- 0.1 liter
- Reset
- Press button on the front
- Compatibility
- Meters with Inductive sensors (Ti)
- Battery lifetime
- Up to 10 years
-
ELECTRONIC ACCESSORY | TRANSMITTER
IZAR BE PULSE
IZAR BASE EXTERNAL PULSE is an interface designed to be associated to a pulse emitter and an IZAR radio module to function as a remote external radio module. Data consumption and alarms can be read in mobile and/or fixed network.
IZAR BE PULSE
- Max. input frequency
- 8 HZ
- Min. pulse duration
- 30 ms
- Cable length
- 3 m
- Degree of protection
- IP 68
- Battery lifetime
- Up to 15 years
-
PULSE EMITTER
IZAR PULSE i
IZAR PULSE i is a pulse emitter that can be clipped onto water meters equiped with inductive technology (grey or red ring). In only a few seconds it turns water meters into communicating meters that can be connected to remote reading systems.
IZAR PULSE i
- Versions
- 3-wire or 4-wire
- Pulse duration
- 50 ... 500 ms
- Max. input frequency
- 8 Hz
- Cable length
- 1.5 or 5 m
- Battery lifetime
- Up to 15 years
-
ELECTRONIC ACCESSORY
IZAR OH BT 2
The opto head is used for reading and configuration of Diehl Metering meters and system components with an optical interface. The data is transmitted to mobile or stationary computers via Bluetooth®.
IZAR OH BT 2
- Meter interface
- IrDa and ZVEI
- LED status
- Battery state, Connection, Communication
- Charging time
- Typical 3.5 hours
- Power supply
- Battery driven (up to 14 hours)
- Interfaces
- Bluetooth®
Software & System Components products
The latest generation of Diehl Metering IZAR radio technology stands for optimised coverage with the highest data quality. With a 100% efficiency rate, all meters within the network can be read reliably at any time and as often as is appropriate.
There are 34 products
